Working principle of automatic laser loading and unloading:

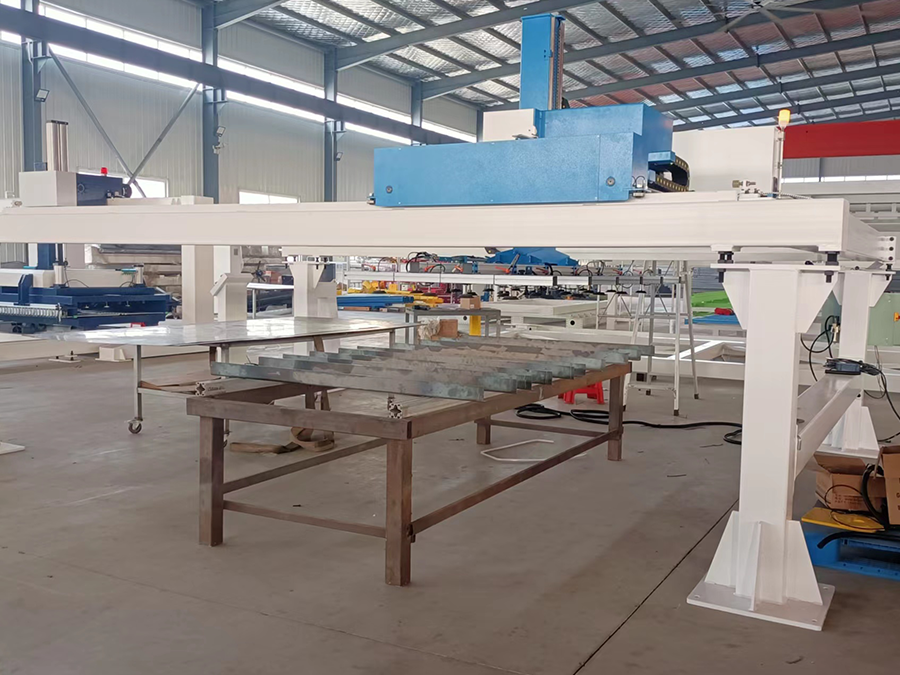

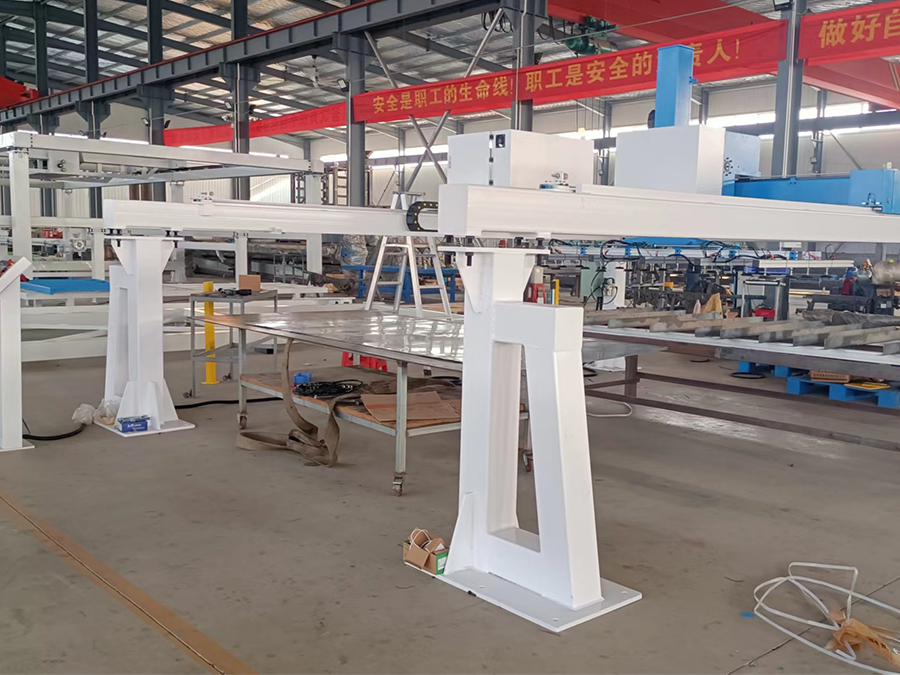

The automatic loading and unloading system is mainly composed of manipulators, loading and unloading position detectors, three-dimensional automated material warehouses, loading and transferring machines and other components. Its working principle is as follows:

Automatic loading:

According to the instructions of the control system, the manipulator or loading and transferring machine automatically takes out the raw materials (or sheet metal parts on the pre-loading workbench) from the material warehouse.

The manipulator uses devices such as vacuum suction cups to firmly suck up or clamp the sheet metal parts.

The manipulator transports the sheet metal parts to the working platform of the laser cutting machine, and the correction platform of the laser cutting machine will correct the sheet metal to ensure cutting accuracy.

Cutting process:

The laser cutting machine starts cutting according to the pre-drawn graphics and set cutting parameters.

During the cutting process, the laser beam and the sheet metal parts move relative to each other to form a continuous slit.

Automatic unloading:

After cutting is completed, the laser cutting machine stops working.

The unloading function of the loader is started, and the cut workpiece is moved from the working platform to the designated storage area.

During the unloading process, the robot or unloading transfer machine will place the workpiece smoothly into the storage area to prevent damage or deformation of the workpiece.

Sheet metal laser automatic loading and unloading equipment is widely used in the following scenarios:

Sheet metal cutting: Efficient and precise cutting of various metal sheets, such as stainless steel, carbon steel, aluminum alloy, etc., suitable for manufacturing automotive parts, mechanical equipment housings, electronic equipment chassis, etc.

Metal engraving and marking: Fine engraving or marking on metal surfaces, such as serial numbers, brand logos, etc., suitable for electronic products, jewelry, tools and equipment, etc.

Advantages and features:

1. Improve production efficiency: The automatic loading and unloading system can quickly and accurately complete a large number of repeated loading and unloading tasks, effectively control the production rhythm, and avoid the impact of human factors on production efficiency.

2. Ensure product quality: Through precise positioning and control, ensure the stability and consistency of the plate, reduce intermediate links, and improve the quality of parts.

3. Improve work safety: Replace dangerous manual operations, reduce the risk of workers contacting dangerous equipment and materials, and reduce the occurrence of industrial accidents.

4. Reduce production costs: Greatly reduce dependence on manual labor, thereby reducing labor costs. At the same time, it has the ability to work continuously for 24 hours, which can improve the utilization rate and operation efficiency of the production line.

5. High flexibility: Good versatility, by modifying the program and gripper fixture, the production process can be quickly changed to adapt to the production needs of different products.
