Gantry steel pipe palletizer

The steel pipe automatic baling and bundling machine is a mechanical equipment that uses automation technology to bundle and fix steel pipes according to preset requirements.

Gantry steel pipe palletizer

The steel pipe automatic baling and bundling machine is a mechanical equipment that uses automation technology to bundle and fix steel pipes according to preset requirements.

Parameters

Principle

Advantages

Parameters

Device Name	Steel pipe automatic packing and strapping machine
diameter	10mm-630mm
length	3m-12m (customizable)
Bundling material	Steel belt, PP belt, PET belt
Strapping width	3mm-32mm
Bundling speed	≤15 seconds (customized according to actual situation)
Power Requirements	380V/50Hz (or customized according to the situation)
Control System	PLC control, support parameter setting, etc.
Scope of application	Steel pipe manufacturers automatically pack and bundle steel pipes
Customization	Customizable

Principle

Function

Automatic strapping: Automatically deliver strapping (such as steel strapping, PP strapping, PET strapping, etc.) to the strapping position.

Automatic tightening: Tighten the strapping to the set force through mechanical or hydraulic systems.

Automatic welding/fastening: Fix the two ends of the strapping by hot melting or mechanical fastening.

Automatic cutting: After strapping is completed, the strapping is automatically cut off to complete a strapping cycle.

Advantages

Features

Automated bundling
The equipment can automatically complete the processes of feeding, tightening, welding, cutting, etc. without manual intervention, and is suitable for bundling of steel pipes of different specifications and lengths.

Efficient and stable
The hydraulic or electric drive system is used, combined with a precise PLC control system to ensure a stable and reliable bundling process and uniform bundling force.

Strong adaptability
The number, spacing and strength of the bundling belts can be adjusted according to the diameter, length and bundling requirements of the steel pipe to meet diversified production needs.

Safe and reliable
Equipped with multiple safety protection devices, such as emergency stop buttons, overload protection, etc., to ensure the safety of operators and equipment.

Easy maintenance
Modular design, key components are easy to replace and repair, reducing maintenance costs, reducing manual operations, and reducing the risk of work-related injuries.

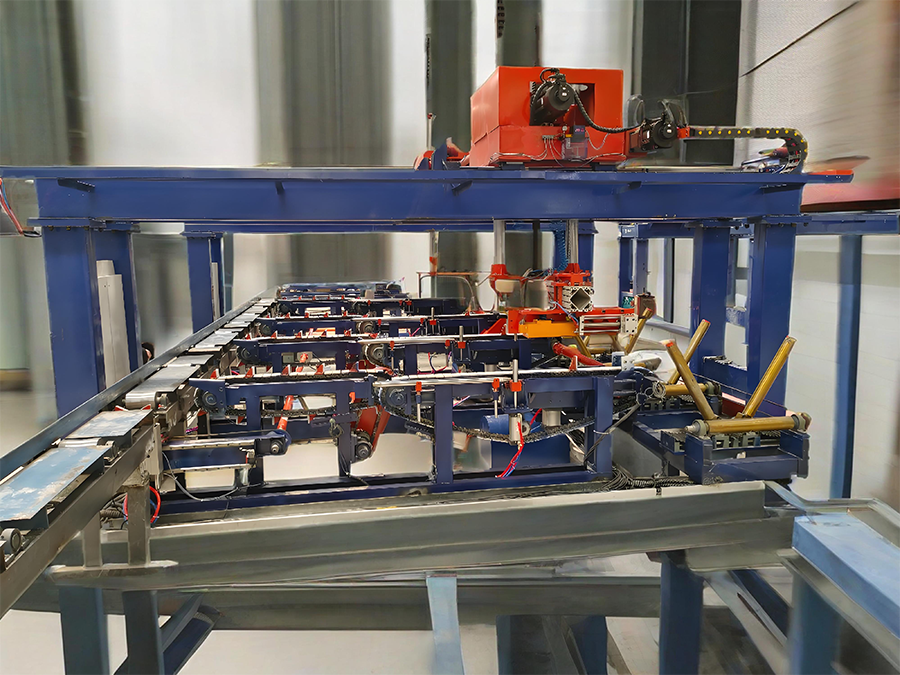

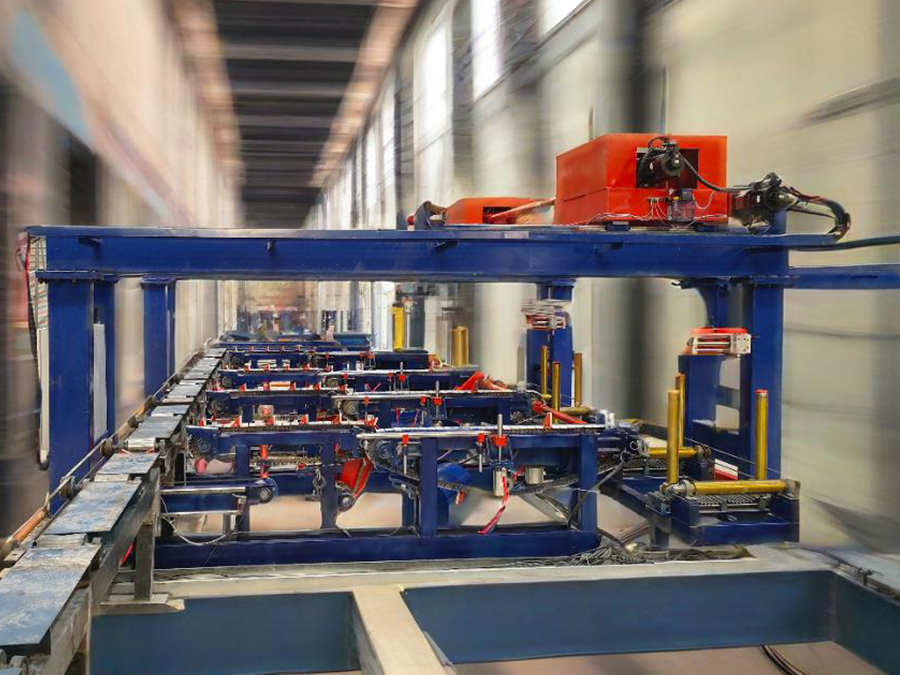

Steel pipe automatic packing and strapping machine

Steel pipe conveyor belt

After-Sales Service

After-Sales Service Commitment

We cover repair costs within the warranty for quality issues and provide 24/7 customer support. We respond within 4 hours to resolve problems quickly.

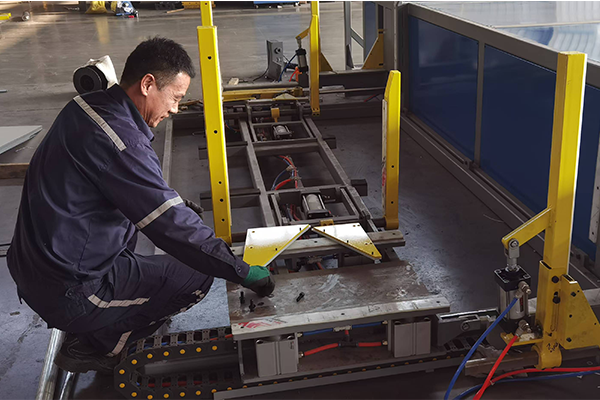

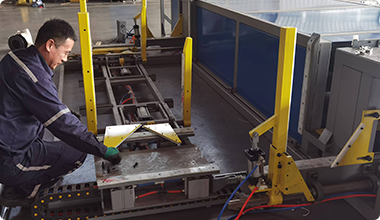

Installation and Debugging

Our technical team will install and debug the equipment on-site, ensuring proper setup and smooth operation.

Operational Training

We provide operator training to ensure correct use, reducing faults. We also train on maintenance and minor repairs to extend equipment life.

Technical Support and Consultation

Clients can reach technical support anytime via phone, email, or online. For complex issues, we offer remote assistance or send technicians on-site if needed.

Maintenance and Care

We provide regular maintenance to ensure efficient operation and prevent faults. In case of failure, we offer emergency repair services to minimize downtime.

Follow-Up and Feedback

We regularly follow up with clients to gather feedback and resolve issues, using it to improve our products and services.

Processing Center

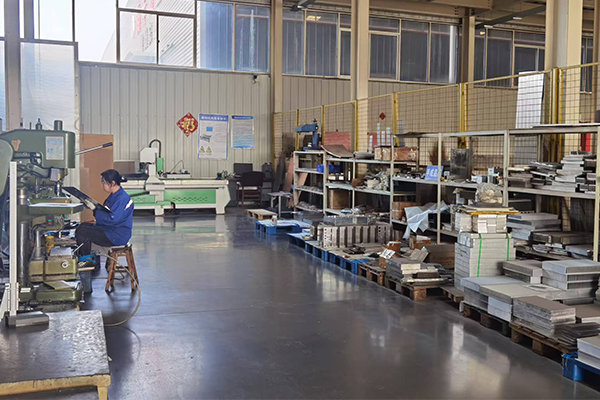

Production Process

Requirements Analysis and Solution Design

Upon receiving customer orders, our technical team conducts a detailed requirements analysis. Tailored solutions are provided based on different products and application scenarios, ensuring precise alignment with production requirements.

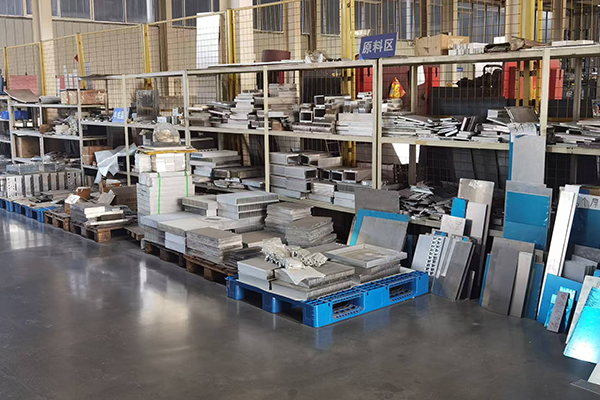

Raw Material Procurement and Inspection

High-quality raw materials are carefully selected, with quality inspections and acceptance checks performed before they are stored to avoid production issues caused by material defects.

Production Preparation

Prepare the necessary equipment, tools, and production lines. Equipment status is checked to ensure smooth operation across all workshops.

Cutting and Processing

Utilize high-precision CNC punching machines, laser cutters, and engraving machines for cutting, punching, and engraving materials. Advanced laser cutting technology ensures high precision and smooth cutting surfaces, minimizing material waste.

Bending and Forming

After cutting, parts are bent and formed according to design specifications, ensuring accurate structure and dimensions.

Welding and Assembly

Bent and formed parts undergo welding, either by automated robots or manual welding, ensuring solid and smooth joints, adhering to strict standards.

Surface Treatment and Coating

After welding, parts go through surface treatments such as spraying, hot-dip galvanizing, and electroplating to enhance appearance, corrosion resistance, and durability.

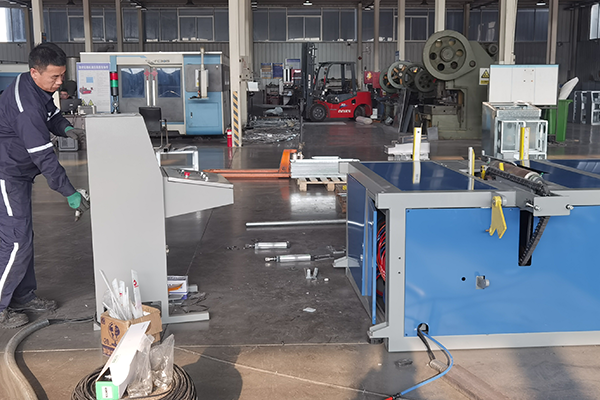

Assembly and Debugging

After surface treatment, components are assembled according to design requirements. Once assembly is complete, products undergo full debugging to ensure stability and functionality.

Quality Inspection and Testing

All products undergo strict quality inspections before leaving the factory, ensuring they meet the standards. Automated equipment undergoes functional, load, and reliability testing to ensure high-efficiency and stable operation at the customer’s site.
